5+ Durability Test of Concrete (2024)

Concrete Durability: Factors, Tests, and Importance in Construction

Concrete stands as a pillar of strength in modern construction, known for its durability against various stresses.(Durability Test of Concrete)

Understanding the factors influencing concrete durability and the essential tests used to assess it is crucial for engineers and builders alike.

Factors Affecting Concrete Durability

Quality of Materials:

• The durability of concrete depends significantly on the quality of its materials cement, aggregates, water, and admixtures.
• Using high-quality components reduces the risk of premature deterioration.

Water-Cement Ratio:

• This ratio plays a critical role in concrete strength and durability.
• Lower ratios result in stronger and more durable concrete by reducing porosity and permeability.

Mix Design:

• Properly proportioned mixes ensure concrete has the strength and resistance needed to withstand environmental factors.

Curing Conditions:

• Effective curing prevents cracking and enhances strength by maintaining optimal moisture and temperature levels during early stages.

Environmental Exposure:

• Concrete’s exposure to elements like freeze-thaw cycles, chemicals, abrasion, and temperature fluctuations affects its longevity.

Construction Practices:

• Quality construction practices from placement and compaction to finishing affect concrete’s durability and overall performance.

Concrete Durability Tests: Ensuring Longevity and Performance

• Concrete durability is crucial for the lasting performance of structures, especially in challenging environments.
• Several key tests are employed to assess concrete’s ability to resist deterioration over time.
• Here’s a look at essential durability tests commonly used in construction:

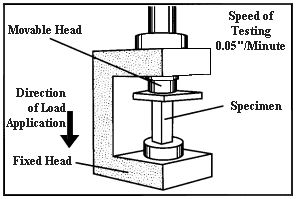

Compressive Strength Test

Purpose:

While primarily assessing concrete’s strength, this test indirectly indicates its durability by measuring its capacity to withstand applied loads.

Procedure:

• Concrete cylinders or cubes are cast and cured under standard conditions.
• They’re then subjected to compressive force using a hydraulic press until failure.
• The maximum load at failure divided by the cross-sectional area provides the compressive strength.

Importance:

Higher compressive strength generally suggests better resistance to various forms of deterioration, though it’s not a direct measure of environmental durability.

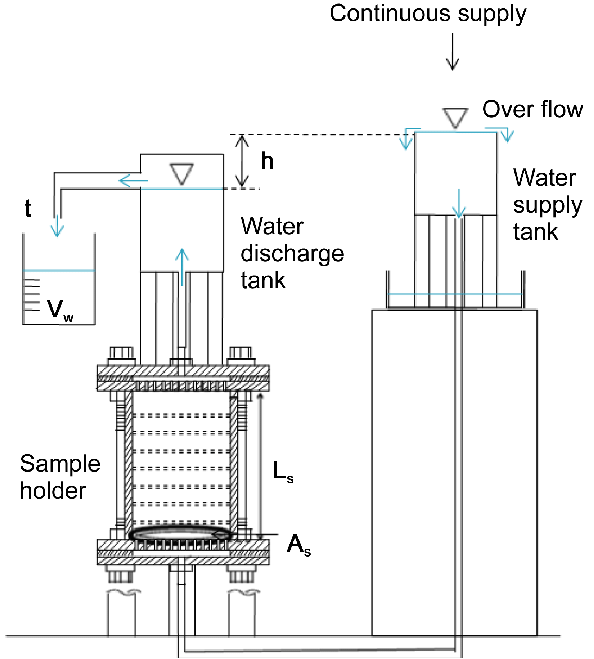

Permeability Test

Purpose:

Determines how well concrete resists the penetration of water, chloride ions, and other harmful substances that can lead to deterioration.

Procedure:

• Various methods exist, such as the Rapid Chloride Ion Penetration Test (RCPT) and Water Permeability Test.
• These evaluate how quickly water or chloride ions pass through concrete under controlled conditions.

Importance:

Low permeability indicates higher durability, suggesting concrete is less susceptible to moisture ingress and chemical attacks that could corrode embedded reinforcement.

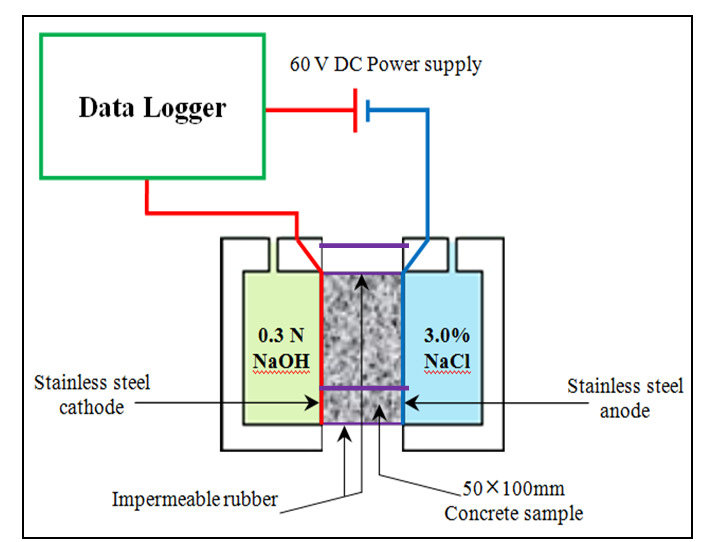

Chloride Ion Penetration Test

Purpose:

Specifically assesses the penetration of chloride ions into concrete, crucial for evaluating the risk of steel reinforcement corrosion.

Procedure:

• Concrete specimens are exposed to chloride solutions or an electrical charge (RCPT).
• The depth of chloride penetration is measured after ward to gauge concrete’s resistance to chloride ingress.

Importance:

• High chloride penetration can lead to reinforcement corrosion, significantly compromising concrete durability.
• This test helps predict and prevent such issues over time.

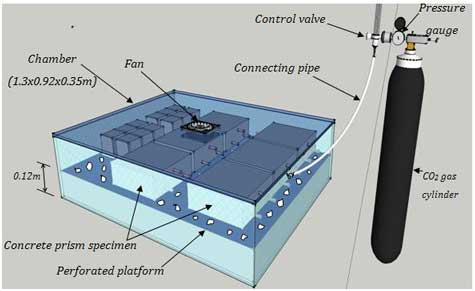

Carbonation Test

Purpose:

Measures how deeply carbon dioxide from the atmosphere penetrates concrete, reducing its alkalinity by forming calcium carbonate.

Procedure:

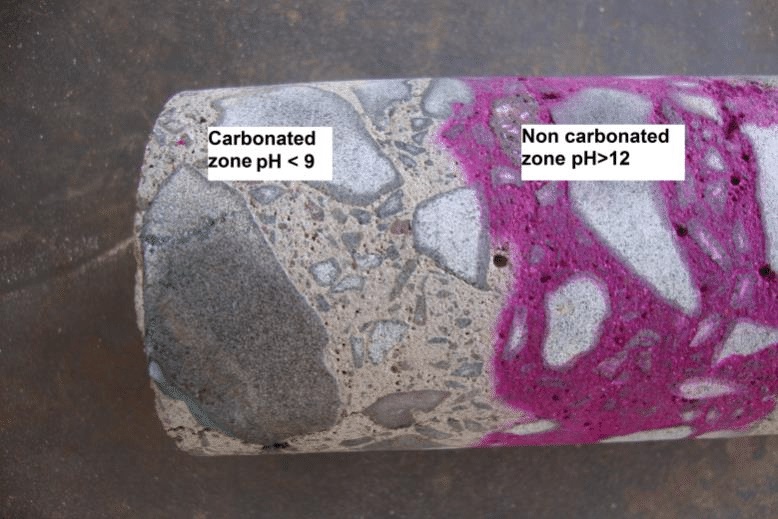

• Concrete samples are exposed to a CO2-rich environment or sprayed with a phenolphthalein solution, which changes color on contact with carbonated concrete.
• The depth of color change indicates carbonation depth.

Importance:

• Carbonation reduces reinforcement passivation, increasing susceptibility to corrosion.
• Monitoring carbonation helps anticipate durability issues in outdoor-exposed concrete.

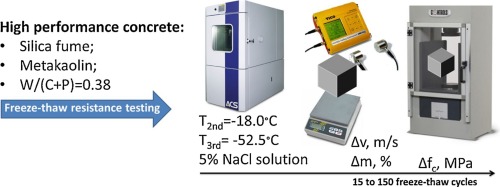

Freeze-Thaw Resistance Test

Purpose:

Evaluates concrete’s ability to endure repeated freezing and thawing cycles without significant damage.

Procedure:

• Concrete specimens undergo multiple freeze-thaw cycles under controlled conditions.
• Changes in mass, volume, and visual inspection help assess damage susceptibility.

Importance:

• Freeze-thaw cycles can cause concrete cracking and spalling, particularly in cold climates or areas with de-icing salts.
• This test simulates these conditions to ensure concrete durability.

Conclusion

Conducting these durability tests is crucial for evaluating and ensuring concrete’s long-term performance and resilience in construction projects.

By understanding how concrete withstands various environmental stresses, engineers and builders can make informed decisions to enhance durability and extend structure lifespan, contributing to sustainable infrastructure development.
