Understanding Mat Foundation: Essential Guide-2024

When it comes to constructing stable and enduring structures, choosing the right foundation is crucial.(Mat Foundation)

Among the various types of foundations, mat foundations also known as raft foundations stand out for their effectiveness in handling challenging soil conditions and supporting heavy loads.

This comprehensive guide will walk you through the essentials of mat foundations, including their design, applications, advantages, and considerations.

What is a Mat Foundation?

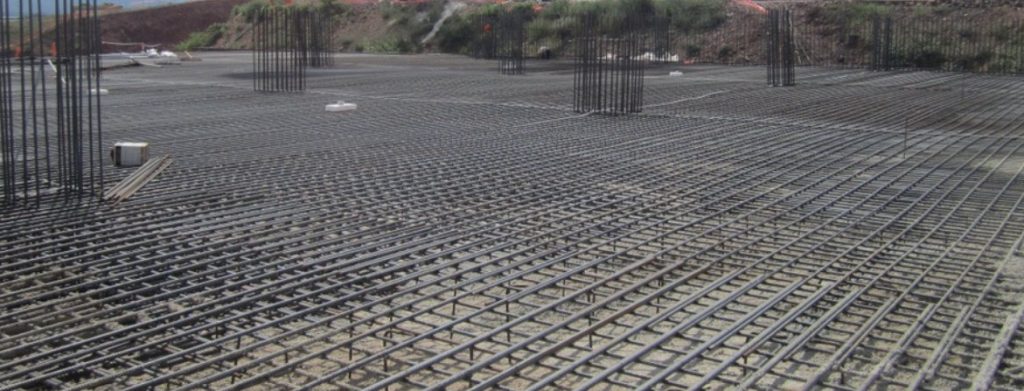

A mat foundation, or raft foundation, is a type of large, thick concrete slab designed to spread the weight of a structure over a broader area.

Unlike traditional footings, which are concentrated at specific points, mat foundations cover the entire footprint of the building.

This design ensures even distribution of loads and reduces the risk of settlement and structural issues.

Design and Construction of Mat Foundations

Purpose and Structure:

Mat foundations are designed to support heavy structures or buildings on weak or compressible soils.
The foundation consists of a continuous slab of reinforced concrete, which may include thicker sections or “raft beams” for additional support.
This even coverage helps in distributing the building’s weight uniformly across the ground.

Reinforcement:

Reinforcement is a critical component of mat foundations.
Steel rebar is embedded within the concrete to handle tensile stresses and enhance the slab’s load-bearing capacity.
Proper reinforcement ensures that the foundation can withstand the forces exerted by the structure and the soil.

Applications of Mat Foundations

Mat foundations are particularly beneficial in the following scenarios:

Poor Soil Conditions:

When the soil has low bearing capacity or is prone to excessive settlement, mat foundations provide a reliable solution by distributing the building’s load over a larger area.

Heavy Loads:

For high-rise buildings, industrial facilities, or structures with substantial weight, mat foundations offer the necessary support to prevent structural issues.

Advantages of Mat Foundations

Uniform Load Distribution:

By covering the entire building footprint, mat foundations ensure that loads are distributed evenly.
This helps to minimize the risk of differential settlement and structural damage.

Mitigates Differential Settlement:

Mat foundations are effective in reducing the risk of differential settlement, which occurs when different parts of a structure settle at different rates.
This is crucial for maintaining the structural integrity of the building.

Simplified Design:

In many cases, using a mat foundation can simplify the design and construction process by eliminating the need for multiple footings or piles.
This can lead to time and cost savings during construction.

Disadvantages and Considerations

Cost:

Mat foundations can be more expensive than other foundation types due to the large quantities of concrete and reinforcement required.
It’s important to weigh the benefits against the costs to determine if a mat foundation is the right choice for your project.

Construction Time:

Building a mat foundation can be time-consuming.
The process involves careful placement of reinforcement and pouring of concrete, which requires meticulous planning and execution.

Soil and Load Analysis:

Before opting for a mat foundation, a thorough geotechnical analysis and accurate load calculations are essential.
This ensures that the foundation is capable of supporting the structure effectively and addressing any soil-related challenges.

Conclusion

Mat foundations play a vital role in ensuring the stability and longevity of structures built on challenging soil conditions or those with significant load requirements.

By distributing the load evenly and reducing the risk of settlement, mat foundations provide a reliable and effective solution for a variety of construction projects.

However, due diligence in design, cost assessment, and construction is crucial to maximize the benefits of this foundation type
